Jet Turbine

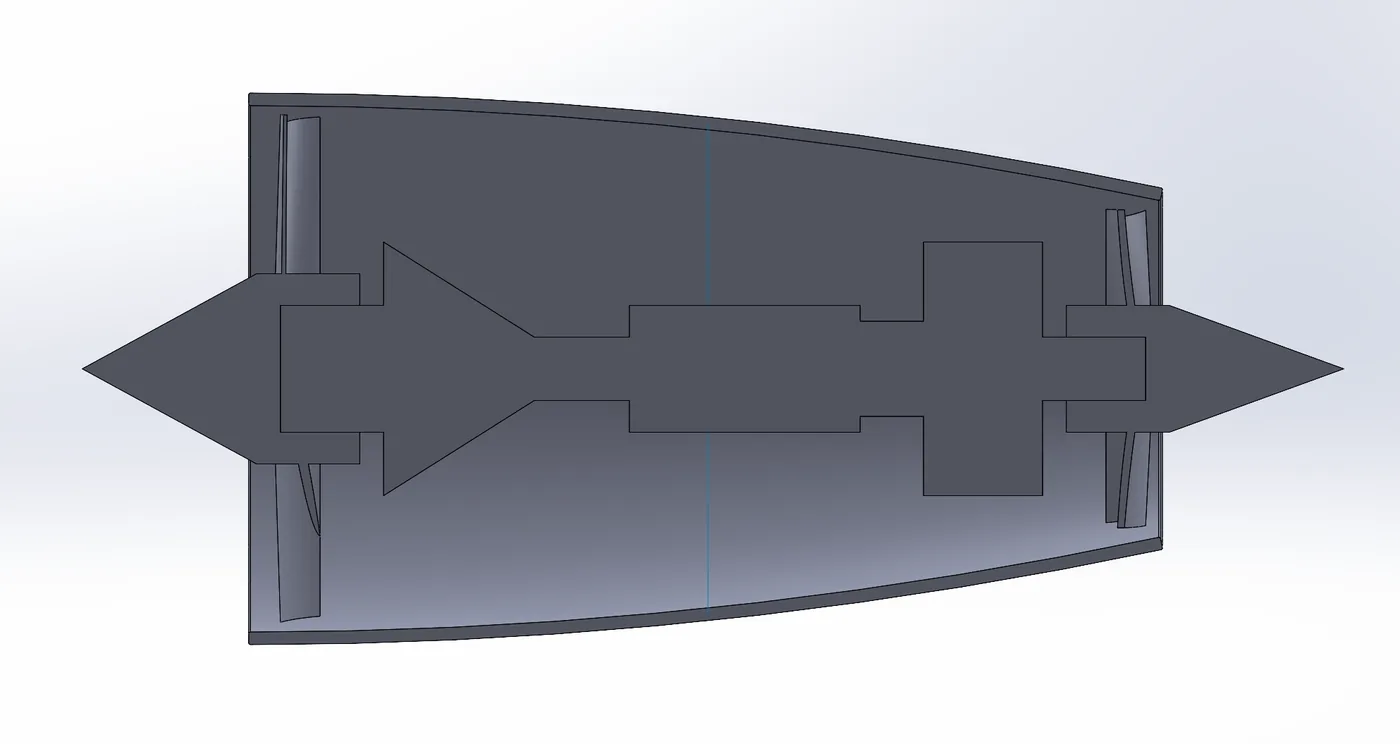

A turbofan-style CAD study exploring blade, spinner, and nacelle geometry, including a full section view of the internal flow path.
SolidWorksSurfacingSection Views
Breadth
CAD & Design Gallery
Additional SolidWorks modeling work — assemblies, surfacing, and section-view studies — shown here for breadth rather than as full case studies. Hover or tap an image to see a second view.

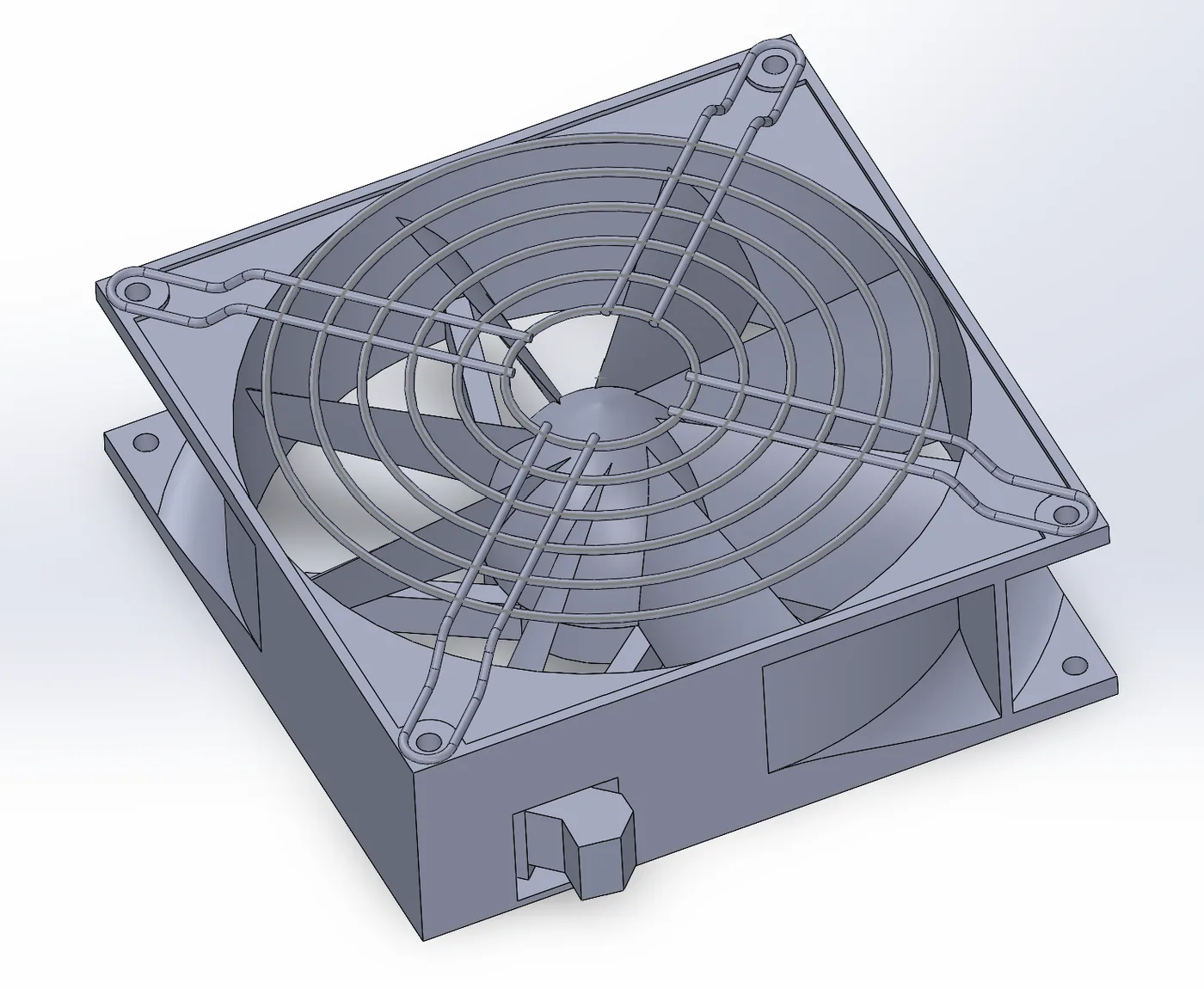

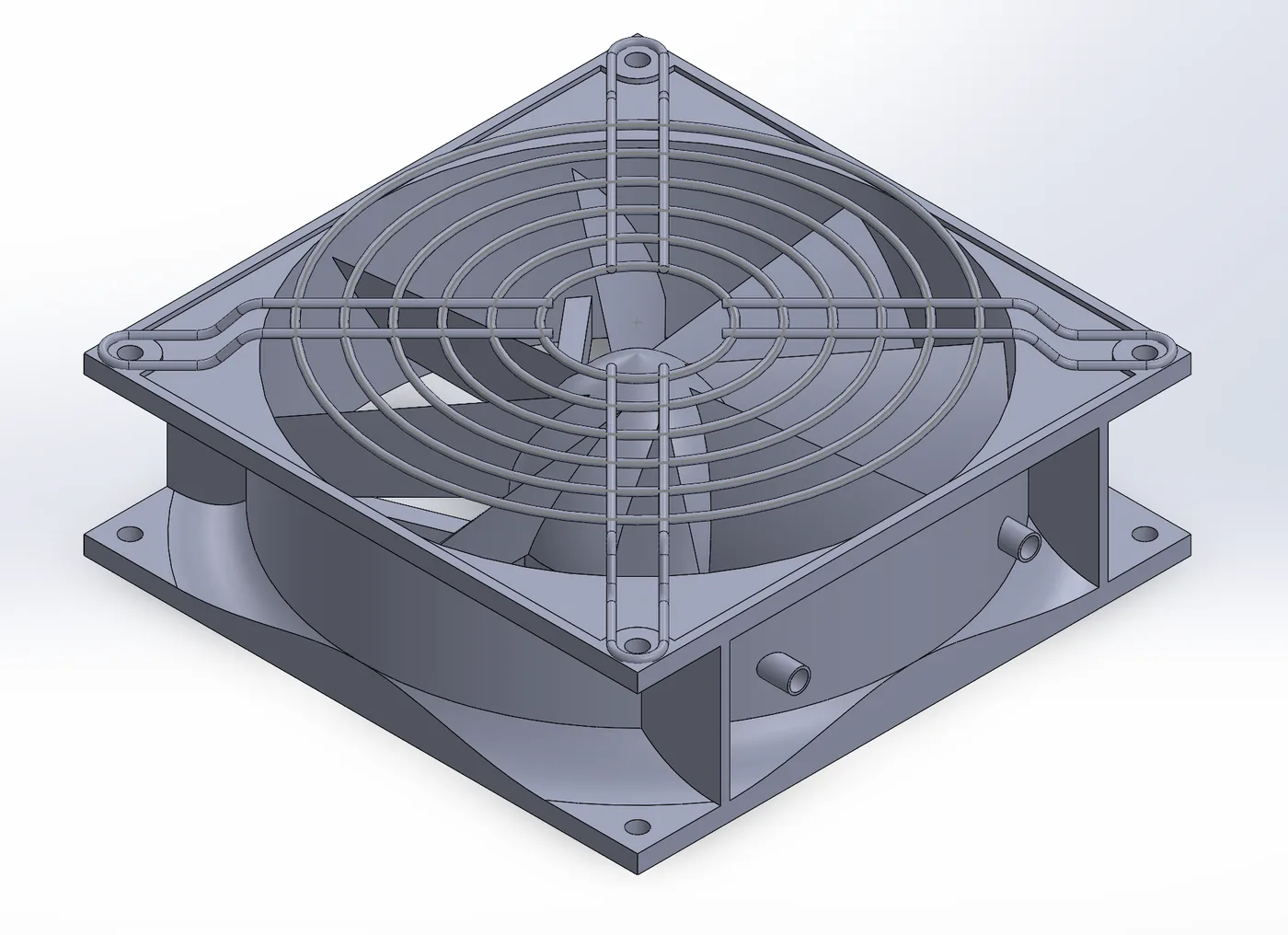

Fan Assembly
A multi-part fan assembly modeled with a driven blade set, protective grille, and mounting housing.
SolidWorksAssemblies

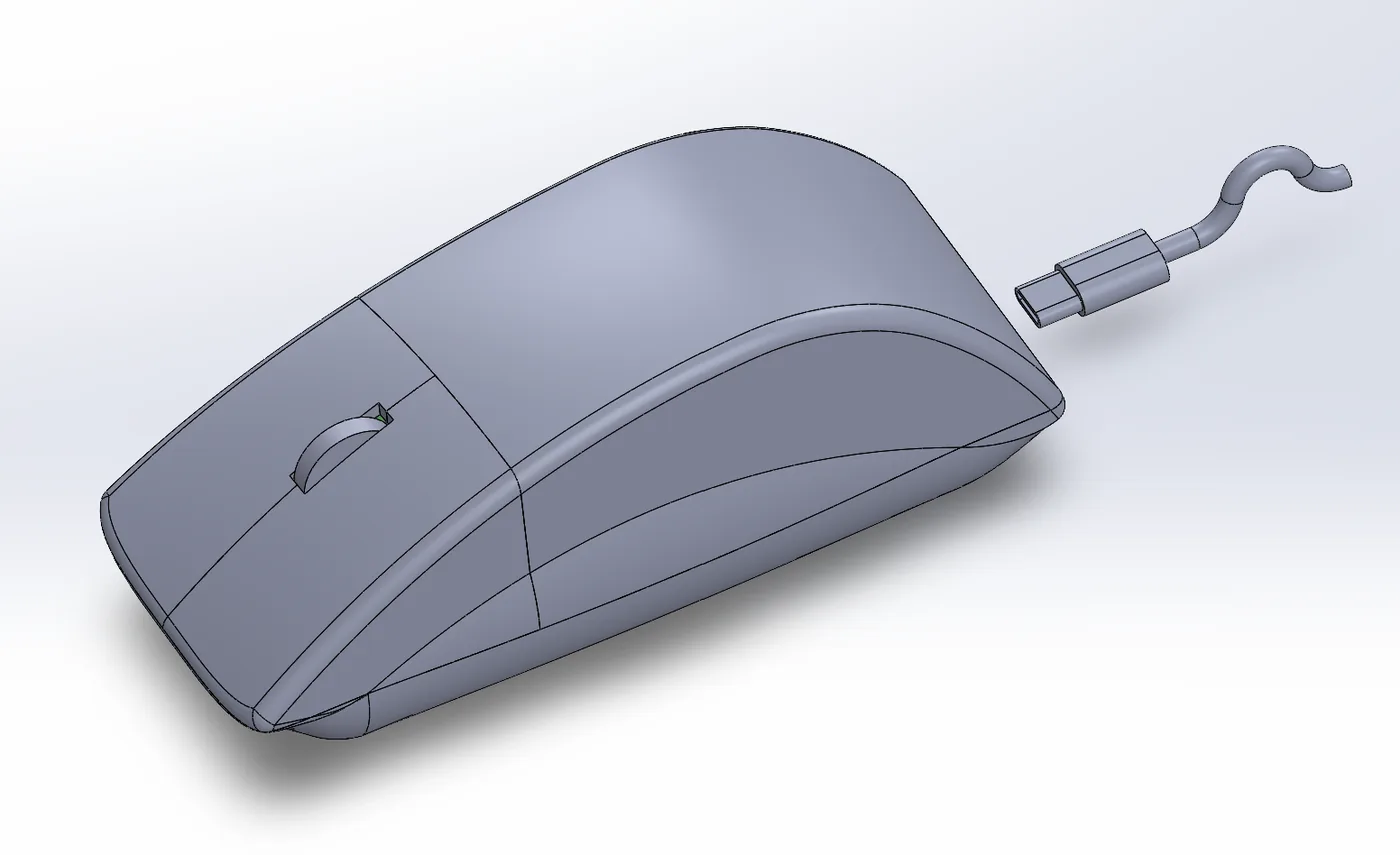

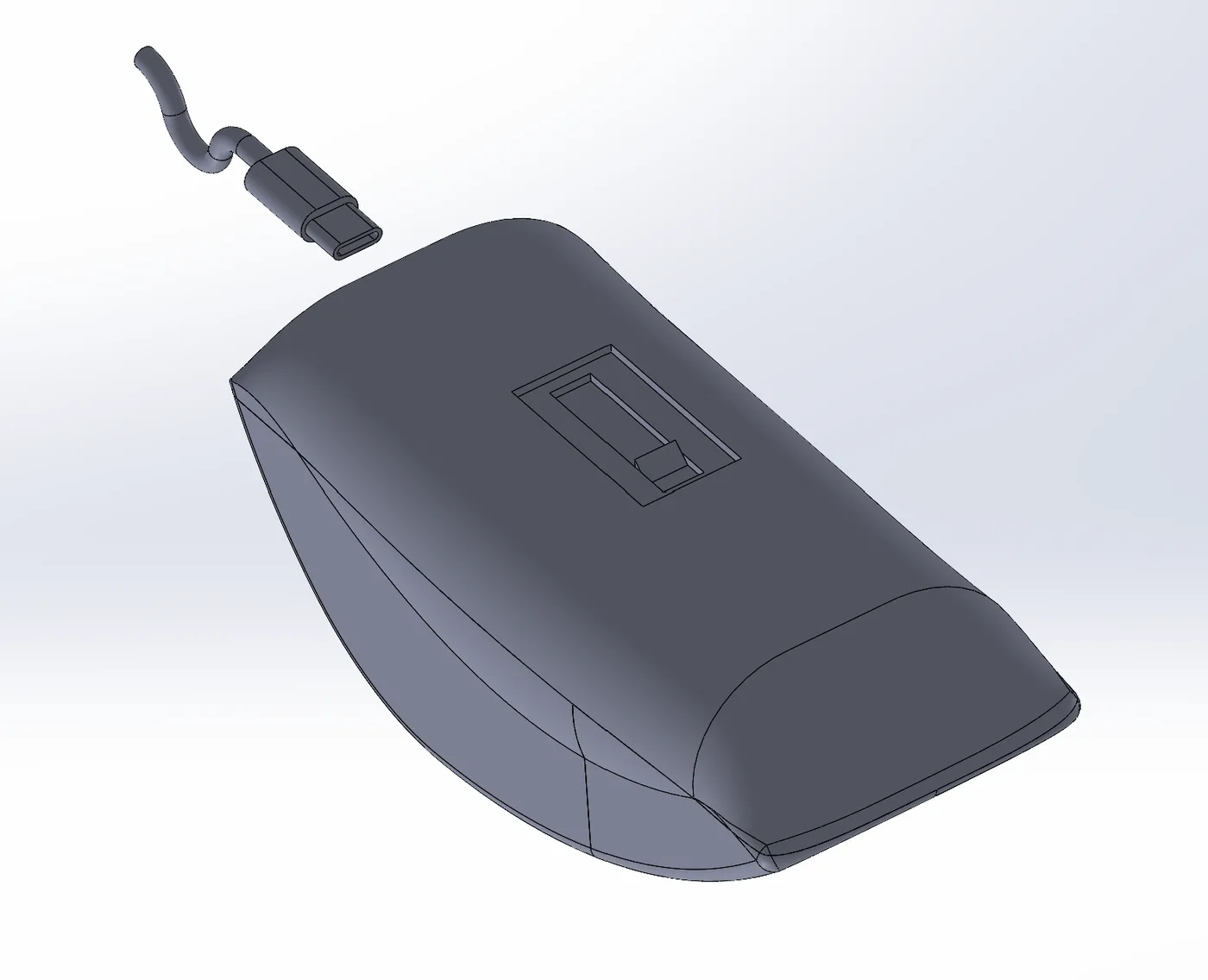

Computer Mouse
An ergonomic mouse shell modeled as a freeform surfacing exercise with blended, continuous geometry.
SolidWorksSurfacing

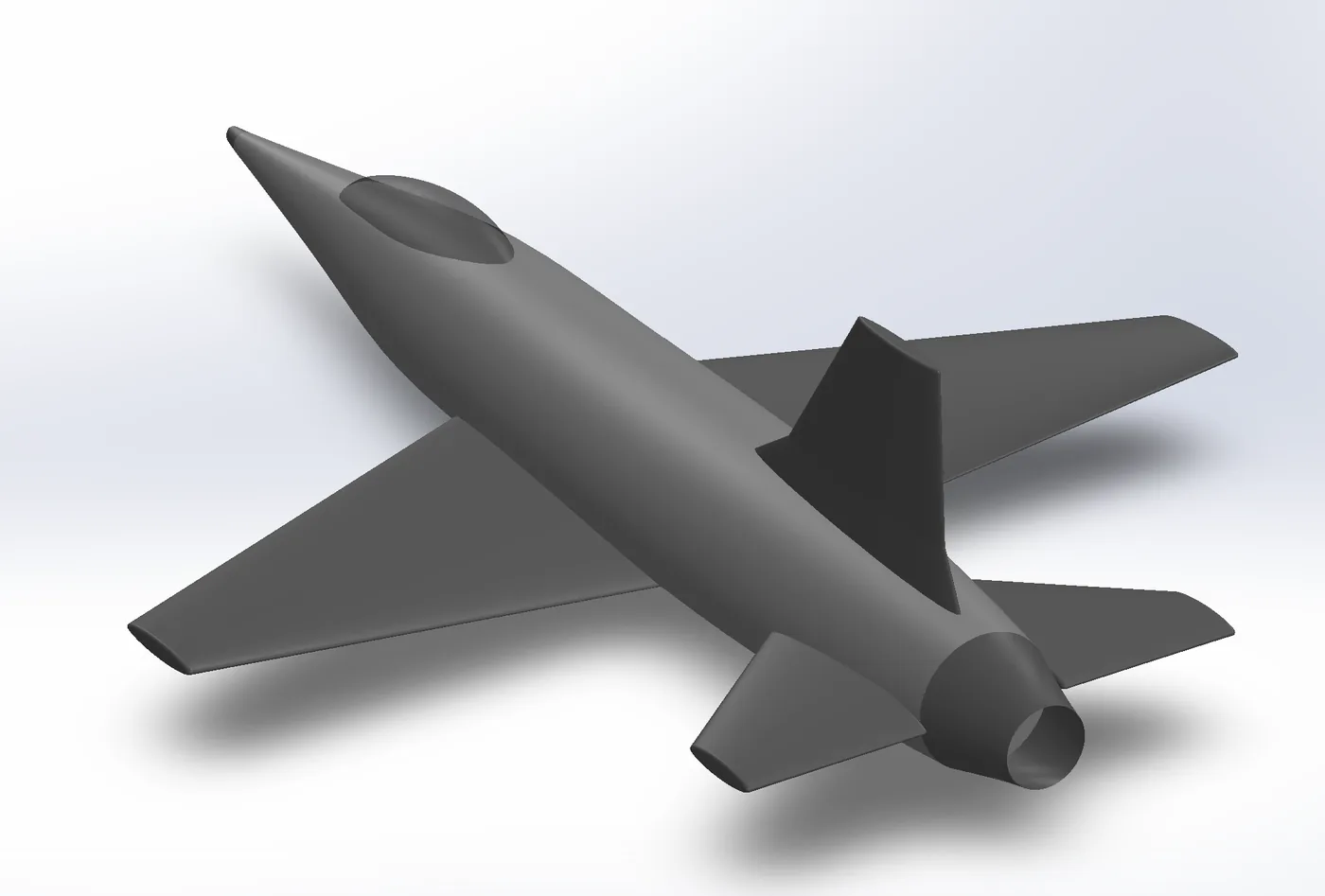

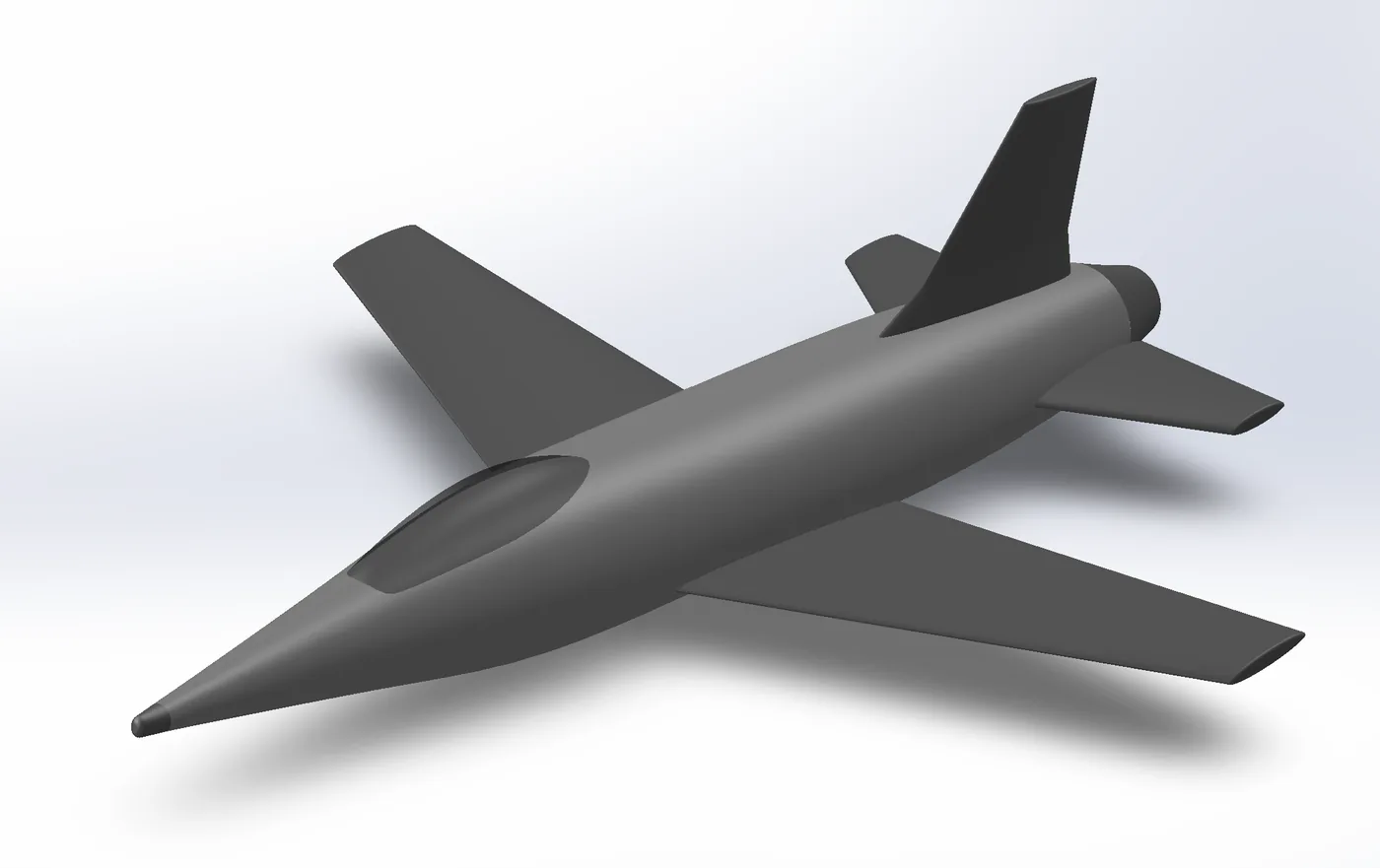

Toy Jet
An isometric concept model of a small jet aircraft form, modeled from both front and aft angles.
SolidWorksSurfacing
Want the full story?
See the Flagship Case Studies
The putter, combustion box, robot, and Pipsqueak engine each carry a project from concept through documentation and, in most cases, physical hardware.
